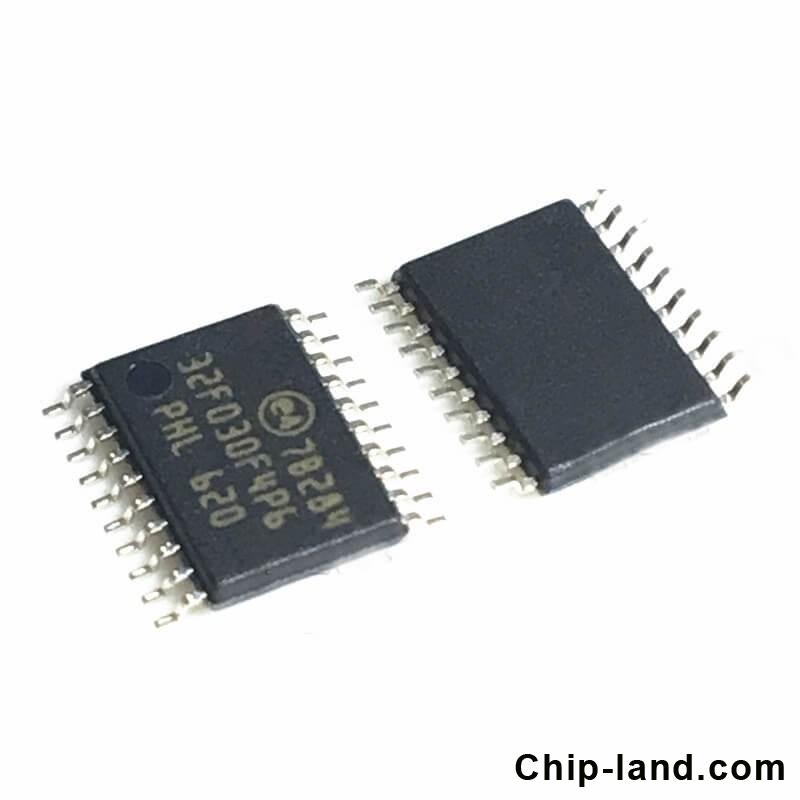

HangShun 32-bit ARM Cotex-M0 MCU HK32F030F4P6A compatible with STM32F030F4P6

Package: TSSOP20
Max Frequency(MHz)：96
Flash(KB)：16
SRAM(KB)：10
GPIO：15
I2C：1
Spi：1
Voltage：1.8~3.6V
Temp：±40℃~105℃

HangShun 32-bit ARM Cotex-M0 MCU HK32F030F4P6A compatible with STM32F030F4P6

Model: HK32F030F4P6A

Package: TSSOP20

Max Frequency(MHz)：96

Flash(KB)：16

SRAM(KB)：10

GPIO：15

I2C：1

Spi：1

Voltage：1.8~3.6V

Temp：±40℃~105℃

CPU Core

ARM Cotex- M0

Maximum clock frequency: 96 MHz

24 bit System Tick Timer

Support interrupt vector remapping (via register configuration of Flash controller)

Working voltage range

Single power domain (main power VDD): 1.8 V~3.6 V

Working temperature range: -40 ℃~+105 ℃

Typical working current

Run mode: 6.1mA@96MHz ； 1.6mA@8MHz

Sleep mode: 4.7mA@96MHz

Stop mode:

-LDO Full Speed: 0.7mA@3.3V

-Low power consumption of LDO: 60 μ A @ 3.3V

Standby mode: 1.6 μ A @ 3.3V

Shutdown mode: 0.4 μ A @ 3.3V

storage

Up to 64 KByte Flash

-When the CPU clock speed is not higher than 24 MHz, it supports 0 bus cycle access to Flash.

-Flash has data security protection function, which can be set with read protection and write protection separately.

-Supports encrypting instructions and data stored in Flash to prevent physical attacks on Flash content.

10 KByte SRAM

data security

CRC verification hardware unit

clock

External High Speed Clock (HSE): Supports 4~32 MHz, with a typical value of 8 MHz

External Low Speed Clock (LSE): 32.768 kHz

On-chip high-speed clock (HSI): 8 MHz/14 MHz/56 MHz configurable

Low speed on-chip clock (LSI): 40 kHz

PLL clock

Chip pin input clock

reset

External pin reset

Power on/off reset (POR/PDR)

Software Reset

Watchdog (IWDG and WWDG) counter reset

Low power mode reset

Programmable Voltage Monitor (PVD)

8-level detection voltage threshold adjustable

Rising edge and falling edge detection can be configured

GPIO port

Supports up to 55 GPIO pins

Each GPIO pin can be configured as an external interrupt input

Provide a maximum driving current of 40 mA

data communication interface

2-channel USART: Supports main synchronous SPI and modem control, with ISO7816 interface, LIN, IrDA functions, and automatic baud rate detection and wake-up features.

Up to 2 high-speed SPI channels: supports 4 to 16 bit programmable data frames with multiplexed I2S interface.

Up to 2 I2C channels: supports high-speed mode (1 Mbit/s), SMBus, and PMBus. In Stop mode, data reception wake-up is supported.

1-channel LPUART: supports asynchronous serial communication, single wire half duplex communication, hardware flow control of modems (CTS/RTS), and multiprocessor communication with minimal power consumption.

Timer and PWM generator

1 16 bit advanced timer (4 PWM outputs, including 3 with dead zone complementary output and braking function)

5 16 bit and 1 32-bit universal timers (TIM2/TIM3/TIM14/TIM15/TIM16/TIM17)

1 16 bit basic timer (TIM6)

1 low-power timer (LPTIM)

On-chip analog circuit

1 12 bit SAR ADC (up to 16 analog signal input channels)

Maximum converter frequency: 1 MSPS

Support automatic continuous conversion and scan conversion functions

DMA controller (with 7 channels)

Supports triggering of various peripherals such as timers, ADCs, SPI, I2C, USART, etc.

temperature sensor

Analog output connected to independent channel of A/D converter

CPU Tracking and Debugging

SWD debugging interface

ARM ® CoreSightTM Debugging Components (ROM Table, DWT, and BPU)

Custom DBGMCU debugging controller (low-power mode simulation control, debugging peripheral clock control, debugging and tracking interface allocation)

Fixed point division/square root operation unit

Supports 32-bit fixed-point division, which can simultaneously obtain quotient and remainder

Support 32-bit fixed-point high-precision square root calculation

Calendar RTC

Equipped with alarm clock function

Can be awakened periodically from shutdown or standby mode

96 bit chip UID identification

reliability

Tested at HBM6000V/CDM2000V/MM200V/LU200mA level.

there are more specifications of HK32F030K6T6A.
